PHYS 366 - 01 EXPERIMENTAL PHYSICS II (2)
Textbook
Learning with LabVIEW 2009
Robert H. Bishop, ISBN-13: 978-0-13-214131-4, Pearson Prentic Hall, 2009
The laboratory course covers the textbook Chapter 3 MathScript, Chapter 5 SubVIs, Chapter 6 Structures, Chapter 7 Arrays and Clusters, Chapter 8 Charts and Graphs. It also covers the manual of Getting Started with LabVIEW Chapter 1~3, and includes a project.
To gain basic knowledge and skill of writing LabVIEW codes;
At the end, the students will be able to develop handling skills and be able to write LabVIEW codes independently, as well as apply the LabVIEW skills on any compicated project.
1) Class Assignments will make up 60% of your grade;
2) The project (week 11-17) will make up 40%;
The grade distribution will be as follows.
A 88% and higher
B 72-87%
C 55-71%
D 41-54%
F 40% and below
We use the +/- system so in each range (no A+), the low end will be minus and the high end plus.
ATTENDANCE IS MANDATORY
If more than two classes are missed, an automatic F will be given. The exception will be ONLY in the event of an emergency. Proper paperwork will be required. Do NOT be late to class.
Current Zoom Meeting Video Record
Date
|
Lecture On These Sections |
Comments |
Lab 1: Jan 23 |
Getting started with LabVIEW: Chapter 1~3 |
Lecture, Remote Access |
Lab 2: Jab 30 |
Advanced LabVIEW 1: |
Lecture 1, Lecture 2, |
Lab 3: Feb 9 |
Advanced LabVIEW 2: |
Structure |
Lab 4: Feb 16 |
Advanced LabVIEW 3: |
Array |
Lab 5: Feb 23 |
Advanced LabVIEW 4: |
Array-Cluster |
Lab 6: Mar 2 |
Advanced LabVIEW 5: |
File-I-O |
| Lab 7: Mar 6 | Advanced LabVIEW 6 | MathScript |
Lab 7: Mar 13 |
Advanced LabVIEW 7: |
Camera grab ,Video-Grab-Record， Read-A-AVI-File, Video, Camera Assignment |
Lab 8: Mar 20 |
Spring Recess |

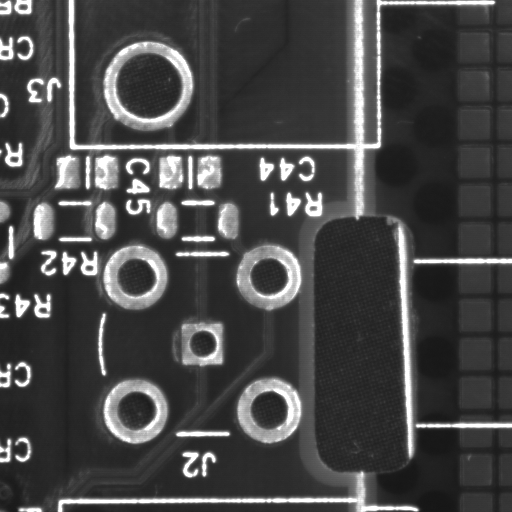

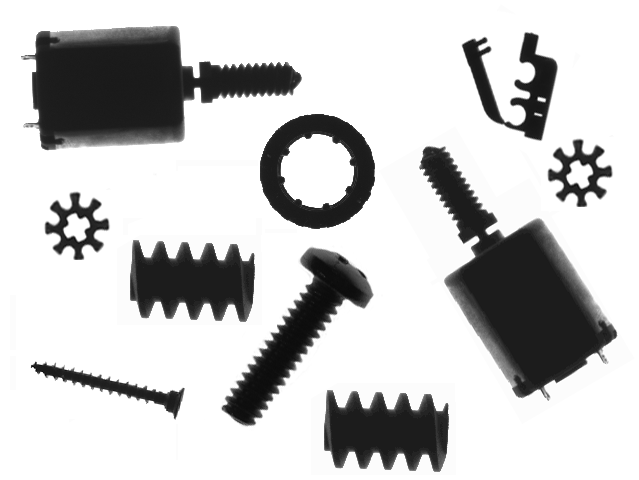

Pattern-Match 1, Pattern-Match-v2 |
| Lab 9: Mar 27 | LabvIEW Installation | Pattern Match Example, Figure for PME, Pattern Match Video, Pattern-Match Assignment |
Lab 9: Apr 3 |
Advanced LabVIEW 8: | Pattern Match Example, Figure for PME, Star Figure , Star Video , Pattern-Match Assignment |
Lab 10: Apr 10 |
Project | Project 1, Jupiter_video |
Lab 10: Apr 17 |
Project | Project 1 (office hour) |
Lab 11: Apr 24 |
Project | Project 2 , Images , Example code , LC Phase Retardance Introduction |
| Lab 11: May 1 | Project | Project 2 (office hour) |
| Lab 11: May 8 | Project | Project 2 (office hour) |
| Lab May 15 | No class (May 12 is the last lecture day) |
Useful Linkers:
(1) National Instruments (LabVIEW)
(2) User Guide for NI UBS 6008 Data Acquisition
(4) Example for NI USB 6008 programming
