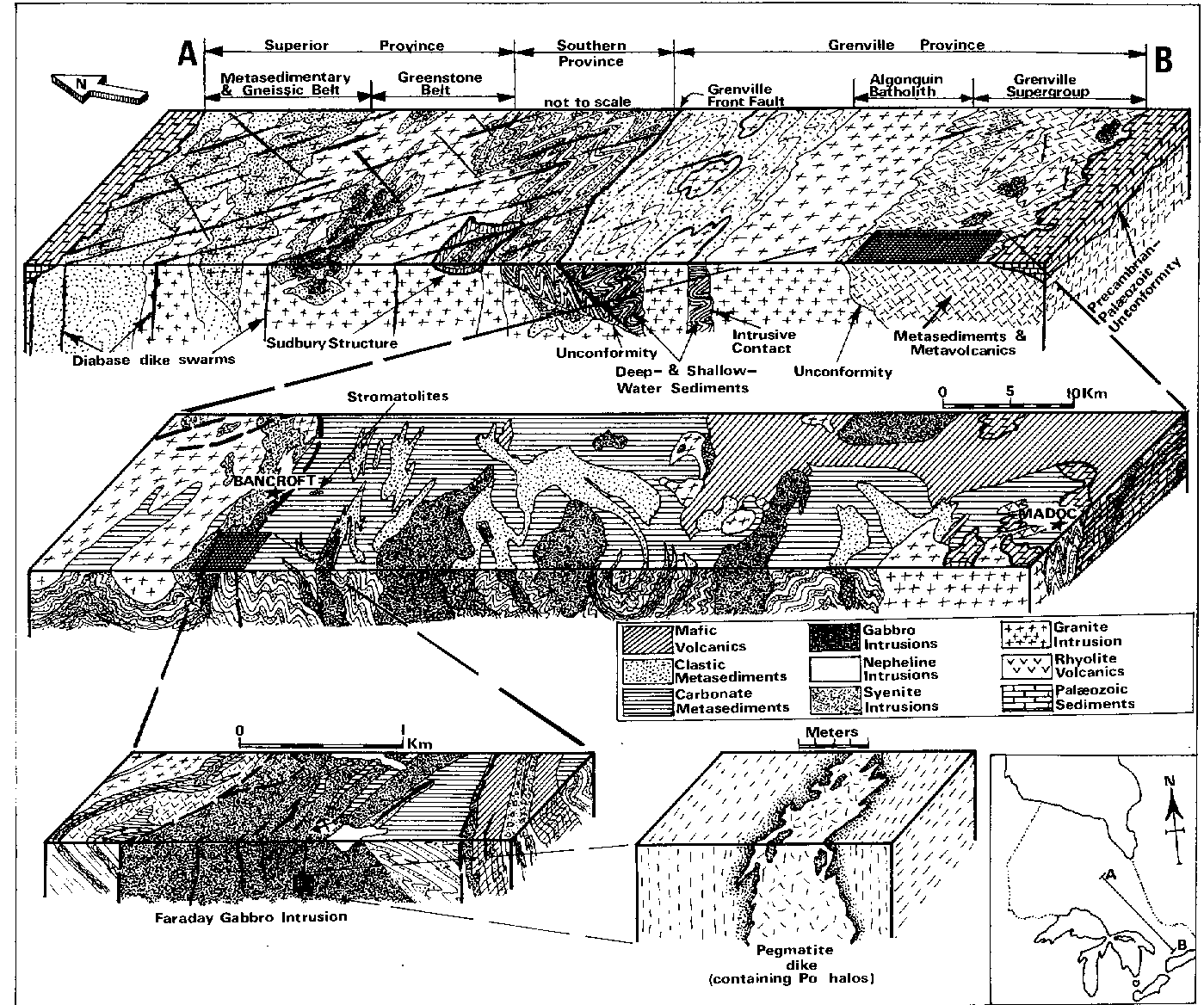

Figure 5. Block diagram of the Precambrian Canadian Shield. The dikes which Gentry’s rock samples came from were the last rocks to form in the shield (details in text). (Drawn by J.R. Wakefield. Based upon maps, descriptions in references and conversations with H. Meyn, 1987.)
