By Mark Jurey

Originally the Penny Alcohol Stove was to work as a backup for a small ultralight 3 oz. wood backpacking stove. Since the Penny was so successful, and the wood stove development so frustrating, things soon got reversed. After years of trying to get tiny backpacking stoves to burn clean, it was the Zen Alcohol Stoves and Ray Garlington sites that finally outlined the solution and brought my design together. Thank you Ray and Zenseeker. This is a variation of a TLUD gasifier (Top-Lit UpDraft) stove. It uses a top down burn and hot air injectors to produce a clean efficient flame.

I have heated my home with wood for over 35 years and my first home stoves were metal boxes with ways to control the air supply. Newer stoves, like the one I use today, are extremely clean burning and over 80% efficient. The Penny Wood stove has the same features found in these, including; 1- a slow controlled primary burn to release the wood gasses, 2- hot air secondary injectors to burn these gasses, 3- a double wall area to hold heat in the wood and warm the secondary air supply.

I now bring the wood stove, and on some trips even leave the Penny and alcohol home. When I take both, I leave the Penny pot support (1 oz.) at home. I use the Wood stove (3 oz.) with stakes reversed as a pot support for the alcohol burner (see below). So, for 2 oz. more weight (or 2 oz. less alcohol) I have an unlimited heat source. If I'm above the tree line or want quick heat, I use the alcohol. If I have the time, or the weather turns bad, or snow is the only water source, I burn wood.

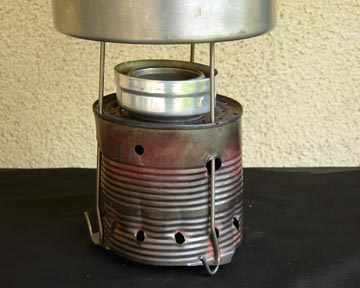

The stakes are reversed to support the pot 1" above the top rim of the Penny Alcohol stove (shown are 6" titanium stakes, see below).

There's nothing like a warming fire at the end of a day of hiking. Usually one night of cooking over an open fire is enough to convince the bugs to go away. A little black on the pot is the only down side and that can be handled with a single plastic bag. The pot and stove are usually very clean at the end of a burn - little tar or soot and only a hand full of white ash. I usually wipe the stove and pot with some TP then save the TP to help start the next fire.

Update -

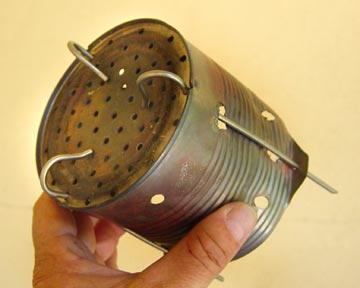

Recently I replaced the drip irrigation stakes with stock 6" titanium stakes from GossamerGear.com (shown above). They are a lighter, stronger, require no cutting, and they make better tent/tarp stakes. Because of the curved shape, the titanium stakes still support the pot 1" above the alcohol stove if the Penny's base is not used

*
Fit inside a 2 quart Open Country or AntiGravityGear pot.
*
Boil one quart with one fill and no adjustments.
*
Additional fuel easy to add for continuous burn.
*
Stable base and pot support for alcohol stove.
*
Efficient and no smoke burn.
*
Leave no trace.

Tomato Can -
(trader Joe's Marinara Sauce)
4" dia. cut to fit into the pot (3-3/4" high after tabs are bent).
Three steel stakes -
6-1/2" long drip irrigation stakes with 3/4" long 45° bend on one end, or, 6" titanium stakes from GossamerGear.com
Total weight -
about 3 oz. or less.

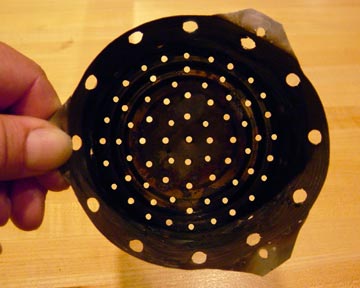

Looking into the can top you can see about 70 - 1/8" holes in bottom - large enough to let in air but small enough to hold the ash.

Note the 12 - 1/4" holes just below the rim. After drilling, they were bent down using the drill bit. These scoop hot secondary air from the sides of the stove and shoot them onto wood gas from the primary burn.

Not showing are the three 1/4" and three 1/2" side holes near the bottom. Both provide additional primary air.

When drilling, I suggest that you use a set or nail to mark the spot, drill slowly but keep the bit moving at a high RPM and wear gloves. Use a round file to smoothe all holes and cuts.

Performance figures -
about the same as the Garlington WoodGasStove. One quart boils in less than 10 min. and holds a boil for 5 to 10 min. more. It burns smoke free with lots of blue flame once fully heated and leaves nothing but white ash.

Notes -
1. The stakes support the pot up to 2" above the stove. This may seem high but it insures complete combustion before gasses reach the pot. This distance also supports the Penny alcohol stove 1" below the pot. If you want better efficiency in high winds, the distance can be reduced.

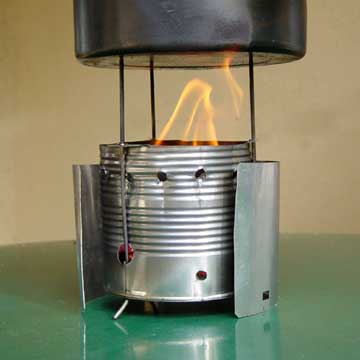

2. I use the Penny alcohol stove wind screen around the wood stove to preheat the air supply for added efficiency. When using the alcohol stove on top of the PennyWood, I hang the support from the pot with some thin wire. I take some foil to use if a higher wind break is necessary or to put under the stove if burning on a combustible surface. On a soft or sandy surface, I use the pot lid under the stove and foil for a lid.

3. Warning! The bent section of the original pot support stakes can sometimes spin and cause instability. If they do, file a notch in the bottom rim of the can for them to fit into.

Filling and Lighting -
Break pencil size wood 1" to 3" long, shake it down as you fill and pack it almost to the top. Dribble some alcohol or lamp oil only on the top and/or light some TP under a wood teepee on top. If necessary, feed kindling until top is fully lit. The secondary air holes will help to provide primary air to get things going. After the top wood is completely lit, put the pot on and enjoy the show. Adjust the next fill as outlined below.

To keep it light and simple this stove has no air adjustments. The primary air comes up through and around the wood pile. The tighter the fuel is packed, the less air moves through, and the slower the burn. If it's too slow (or the wood too green or wet) just blow into one of the bottom holes to speed up the burn. I use a water purifier hose - Steve the goat man uses a flex straw "to get things going quickly and for a quick restart when she about out". You can also turn or raise the wind screen to let wind blow into the bottom holes. Loosely packed chunks of wood can provide too much air. They may flame up faster than the secondary air supply can consume all of the soot.

Different fuels (pine, oak, etc.) have different air supply needs as well. I have tested this stove with everything from wood pellets to very dry oak. Both will work and with some experience you should soon find the best way to load and pack each. With a proper burn there is no smoke and almost no soot on the pot. A slow burn is better because you can always add extra air at the bottom when needed. If you find that you want more primary air, add more 1/4" holes in the side near the bottom or more 1/8" holes in the bottom.

This shows the secondary air holes shooting jets of hot air into the flame to consume the wood gasses released with a slow burn.

If you want a longer burn, add several sticks at a time before the first wood turns completely to charcoal. The stove heat and gasses will keep the process going with little smoke or soot. If the wood does not light immediately, blow in a bottom hole. If it smokes some it's not a problem. The water should be boiling by then and a little wood smoke on the marshmallows only adds to the ambiance.

I suggest that you visit Zen Alcohol Stoves and Ray Garlington sites for information on "inverted downdraft gasifier" technology.

"... My fellow scoutmaster and I tinkered for many nights with the penny alcohol stove and wood stove and not only did we have a lot of fun working on the project, but developed some skills we could share with the youth on our troop. I made some modifications to the wood stove and incorporated the use of the penny stove into it as well, then field tested the units at elevations from 7,000 to 14,000+ feet. The penny alcohol stove performed spectacularly on Mt. Whitney, but I tired to use the wood stove as much as possible to conserve the limited amount of fuel I had brought. As it turned out, the penny stove was so efficient that I had about 5 oz. remaining when we finished...."
Mike Lancaster, Aka Mountainman Mike, ASM Troop 354, Clovis, CA
~

"I made the wood stove you described on your website and was astounded at the performance. Till now I've used single burner campfuel stoves but can see them taking a back seat to your stove... I am a convert to your stove, I really think it is awesome that you can take a tin can, drill holes in it and rival a stove that's worth over $100 - congratulations."
Bryan (from Alberta Canada)
~

"if you are planing to make a woodgasstove, I would recomend the design from mark jurey.... it is amazingly simple and works without fan and batteries (which most other woodgasstoves need).
...once you did a couple of test burns... you will have a very efficient stove with (little) smoke, which lets you boil 20-40 oz of water with little more than two hands full of small woodsticks."
stefan
~

"Cheers Mark, I made the wood burning stove earlier today - very nice indeed - again, thanks for the instructions. Reckon I'll use for trips with my friends but take the Penny Stove for lightweight camping on my own (once I've made it)"
Jon
~

Congratulations for an inspiring stove design. With best wishes and regards,
Dr. N. Sai Bhaskar Reddy GoodStove.com
~

"Some will argue that the penny is a gassifier... it's not (read up on some gassifier theory and you'll see why). However, it is an extremely effecient / simple to build / simple to use raised floor wood stove."
jdmitch@gmail.com
~

"I made a stove when your first design came out and persevered and updated as appropriate. Stove is now “spot on”, and depending on where I am and what I’m doing to the fuel that is available, I have found that Tree Surgeons woodchip burns the best and i keep a bag in the car (to keep dry fuel)as where i live is very wet as it rains a lot (Wales UK). Thanks for the stove."
Simon Cobb
~

"Have you chosen you cooking style? If not, I suggest having a look at freezer bag cooking. If that suits you, then a "penny stove" (not to be confused with a pennywhistle) is my favorite alky burner, the penny wood burning stove a great choice when fuel is readily available and you'll want to boil a bunch of water or cook something that takes longer. ... I'm carrying both the alky stove and the wood stove, so I have options. Not light thinking you say? Perhaps. But the wood stove is for times when fuel is available and dry and I want a longer fire, like to make coffee AND heat water for a meal. I have to refill the alchohol stove between "batches" in that case. The penalty is an ounce or so. So I go with it.
Carey Parks
~

"Hi Mark, Just finished my first PennyWOOD stove and it works great!... These days with no camp fires allowed but stoves are OK? (Hmm does that mean wood stove?) …this micro version is just what doc ordered. The smells and red coals all add to the taste sensation of cooking over a camp fire IMHO. Beats the smell of denatured alcohol any day! BTW I had flex straw handy and found it worked great for blowing in the lower side hole to get things going quickly and for a quick restart when she about out. Thanks for a great KISS design and most of all sharing it with the masses!..."
Steve and his goats <www.angelfire.com/planet/goatman>
~

First, if you are planning on cooking for a long time, make sure to add extra wood early - before it quits flaming and starts burning to coals.

Next, always add larger wood pieces and always at least two or three at a time. The reason for this is that the wood is no longer packed together so the usual smaller sticks will immediately flair up with the added heat and oxygen. The reason for several at a time is that they will reflect heat to keep the larger sticks going at an even rate. Again, stack a second group of sticks before the first stop flaming.

This problem shows how well the downdraft technique works as compared to just burning fuel in a regular stove. If you are using this for camping rather than light weight hiking, you could use a larger can. In fact a taller can - like a large coffee can - will work very well if not better and give you a longer burn. Just make more holes in the can.

Stefan tried the following:
"I followed Marks design but added another row of secondary airholes at the top (one row half an inch below the rim, the other spaced between the first row but 1 1/4" below the rim). This seemed to help for a cleaner burn."

Tips from Stefan at:
http://groups.yahoo.com/group/BackpackingStoves/message/554

"While playing around with the woodgasstove I tried different stuff to get it lit with things from mother nature. The combination that gave me the best results was pine and birch peel.
Fine dry pine twigs balled to some birdnestlike thight structure (they are very flexible even when dry - maybe due to sap/resin content, which might be the reason it starts the fire so well and gave me sticky hands...) where put on top of fresh birch bark / peel. Peeling off the white bark of the birch requires a knife. One should not cut too deep. If you see green, it is too deep and you might damage the tree. Especially if you peel all the way around, the tree could die! The peel should be of some thickness though (maybe as thick as 5 pages of paper). To light the woodgasstove get enough birchpeel pieces to cover the ready (full of wood) stove. Light the peel at two places. It should start burning nicely. Drop the 'pine twig ball' on top (it should have about the same size as the stove) immediatly. Careful! the ball tends to expand as it is lit, so it is best not to have the stove on an inflammable surface. Of this combination I think birch was most indispensable. I could only imagine to replace it by pure sap/resin which can be found on conifer tree wounds. Things I tried but would not work are: pineneedles and pine without the birchpeel. Maybe it would be usefull to get a reservoir of birchpeel while hiking a 'birchrich' region or off a dead birch."

Steve had a great idea:

"I had flex straw handy and found it worked great for blowing in the lower side hole to get things going quickly and for a quick restart when she about out."
